KRS Dewatering Pumps
Dewatering Pumps

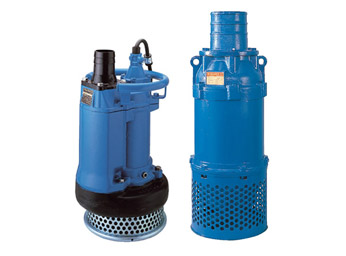

The KRS-series is a submersible three-phase cast iron high volume heavy-duty drainage pump driven by a 4-pole motor. The cast iron body, combined with the low speed motor, presents extra durability for use in the most demanding conditions. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air.*
* Model KRS1022 is a top discharge, flow-thru design. The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability.
| Discharge Bore(mm) | 80 - 250 |
|---|---|
| Motor Output(kW) | 2.2 - 22 |
Dewatering Pumps
The KRS-series is a submersible three-phase cast iron high volume heavy-duty drainage pump driven by a 4-pole motor. The cast iron body, combined with the low speed motor, presents extra durability for use in the most demanding conditions. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air.*
* Model KRS1022 is a top discharge, flow-thru design. The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability.
| Discharge Bore(mm) | 80 - 250 |
|---|---|
| Motor Output(kW) | 2.2 - 22 |
Performance Curves
Model Selection
| Discharge Bore (mm) | Model | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| 80 | KRS2-C3/A3 | 2.2 | Three | D.O.L. | 12 |
| 80 | KRS2-D3/B3 | 3.7 | Three | D.O.L. | 12 |
| 100 | KRS2-C4/A4 | 3.7 | Three | D.O.L. | 12 |
| 100 | KRS2-D4/B4 | 5.5 | Three | D.O.L. | 12 |
| 150 | KRS2-C6/A6 | 7.5 | Three | D.O.L. | 20 |
| 150 | KRS2-D6/B6 | 11 | Three | D.O.L. | 20 |
| 200 | KRS2-8S | 11 | Three | D.O.L. | 30 |
| 200 | KRS815 | 15 | Three | D.O.L. | 25 |
| 200 | KRS819 | 18.5 | Three | D.O.L. | 25 |
| 200 | KRS822 | 22 | Three | D.O.L. | 25 |
| 200 | KRS822L | 22 | Three | D.O.L. | 25 |
| 250 | KRS1022 | 22 | Three | D.O.L. | 25 |
| ไฟล์เอกสาร | จำนวนการดาวน์โหลด |
